Ball Valves(Lever, Gear Motorized, Actuator Operated)

A ball valve is a form of quarter-turn valve that uses a pivoting ball that has been drilled through to control flow. When the hole is in line with the flow direction, it allows fluids or gasses to pass through. Alternatively, when the ball is turned 90 degrees, the flow is stopped completely

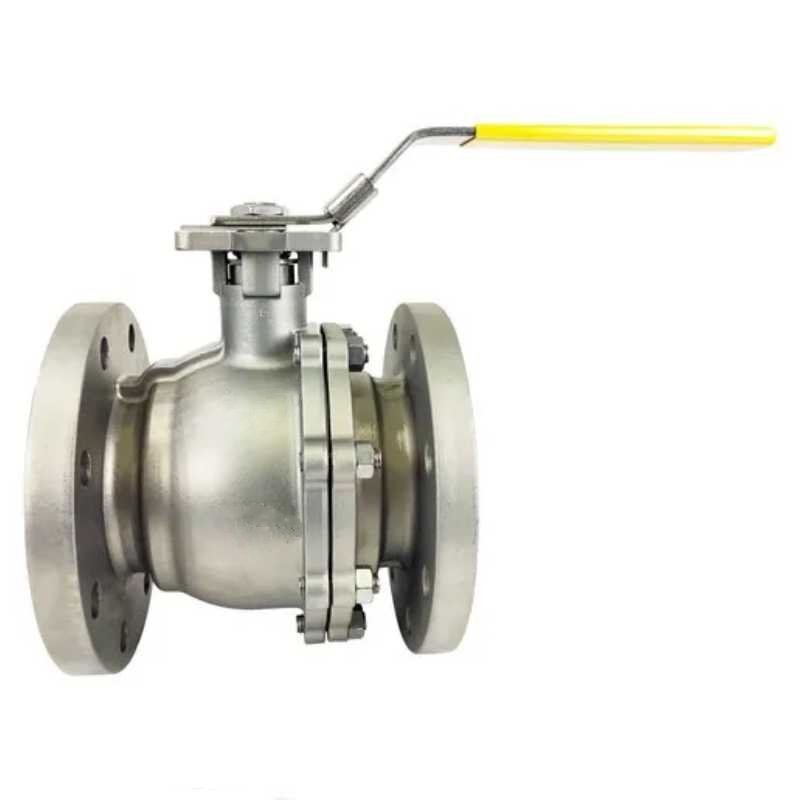

Lever Operated: Ball valves with lever handles are used in many applications where you need to quickly and easily control the flow of liquids or gases

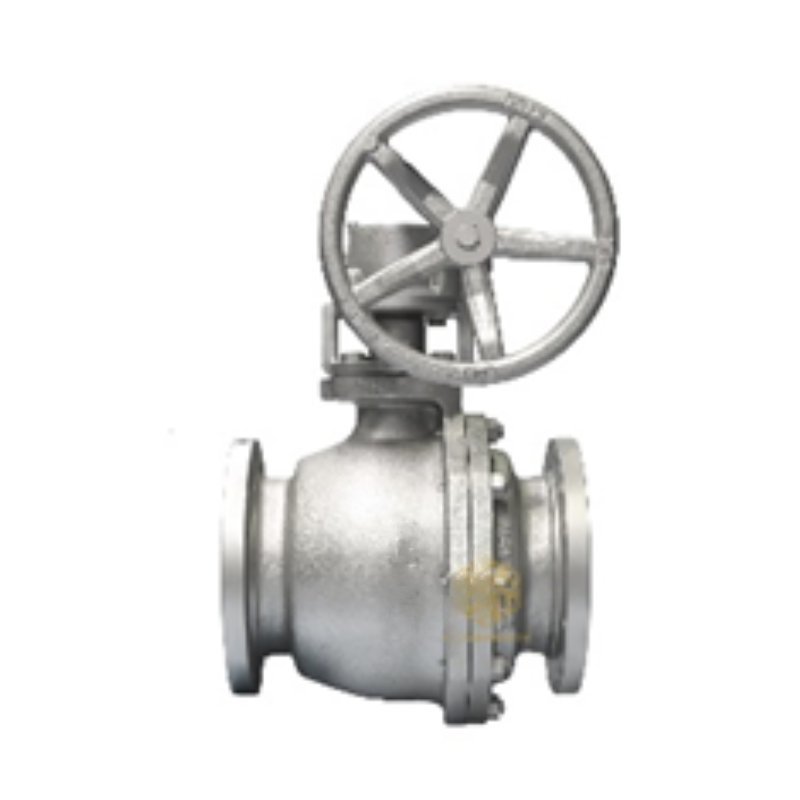

Motor Gear Operated: Gear-operated ball valves are used to control and direct fluid flow in a variety of industries. They are a reliable method for doing so, and they have low flow resistance.

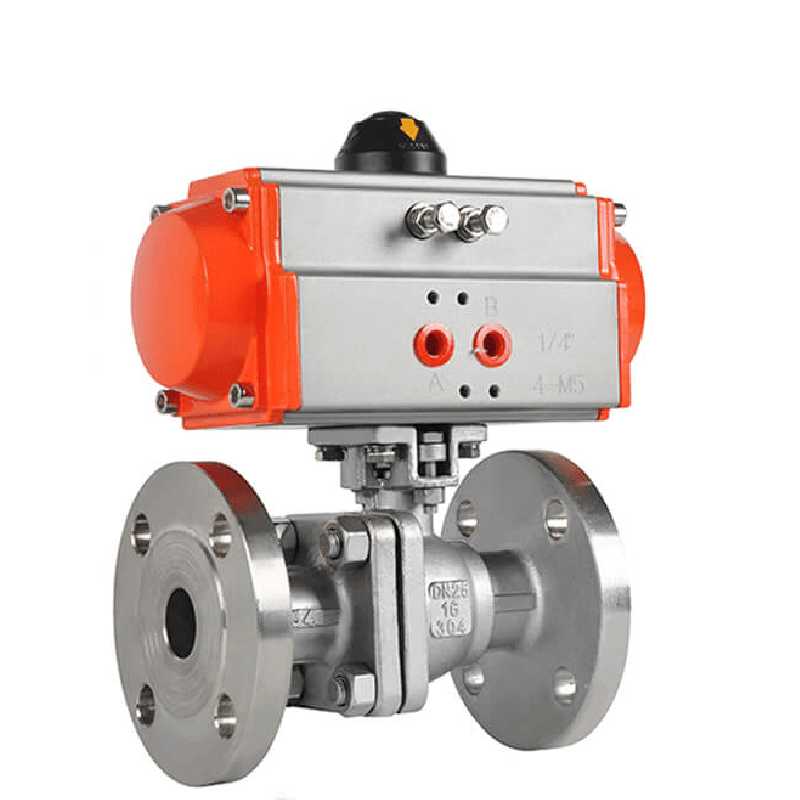

Actuator Operated:Ball valve actuators are used to control the opening and closing of ball valves in a variety of industries and applications

AVAILABLE IN 1PC, 2PC & 3 PC DESIGN WITH LEVER , GEAR OR PNEUMATIC OPERATION AS PER REQUIREMENT END CONNECTION : SCREWED , SOCKET WELD , BUTTWELD & FLANGED

Specification(s)

Size	½” To 24”	½” To 20”	½” To 12”	½” To 12”	½” To 8”	½” To 4”
ANSI Class	150	300	600	900	1500	2500
TEST PRESSURE BODY(KG/CM2)	32	79	156	236	392	652
TEST PRESSURE SEAT (KG/CM2)	22	57	115	172	287	477
MATERIAL OF CONS.	A216GR. WCB, WC5 WC6, WC9 LCB, CF8, CF8M, CF3 CF3M, C.I
DESIGN STANDARDS	BS 5351,ISO 17292, AP1 6D, ANSI B 16.34
TESTING STANDARDS	BS 6755, API 598, API 607, ISO 5208
END CONNECTION	FLANGED, BUTTWELD, SCREWED & SOCKETWELD
