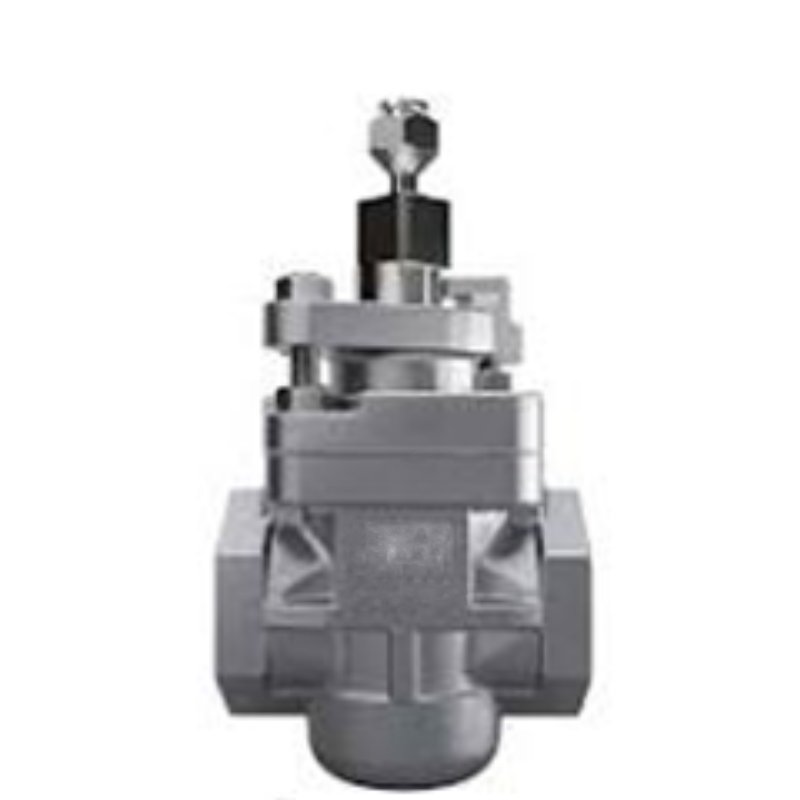

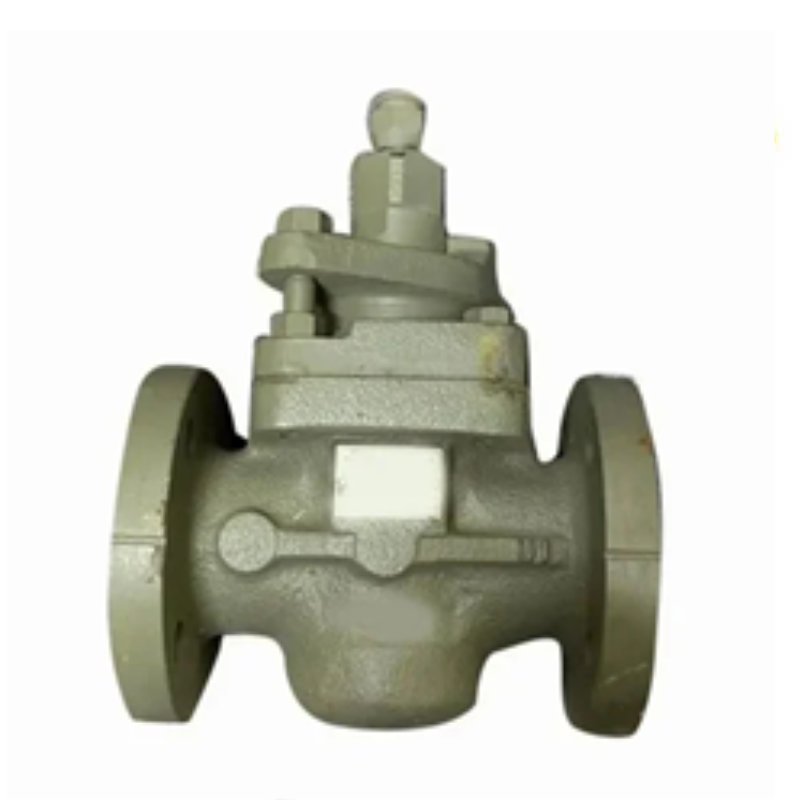

Plug Valve
Plug valves are valves with cylindrical or conically tapered "plugs" which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the plug when the valve is open.
The plug in this kind of valve has one passageway going through it. The ports are typically at opposite ends of the body; therefore, the plug is rotated a fourth of a full turn to change from open to shut positions. This makes this kind of plug valve a quarter-turn valve.
Plug valves are used to control the flow of fluids, gases, and slurries in pipelines. They are used in many industries, including construction, manufacturing, and transportation.
AVAILABLE IN WRENCH OPERATED , LEVER OPERATD & GEAR OPERATION AS PER REQUIREMENT
END CONNECTION : SCREWED , SOCKET WELD , & FLANGED
Specification(s)
| Size | ½” To 48” | |||||
|---|---|---|---|---|---|---|
| ANSI Class | 150 | |||||
| TEST PRESSURE BODY(KG/CM2) | 32 | |||||
| TEST PRESSURE SEAT (KG/CM2) | 22 | |||||
| MATERIAL OF CONS. | A216GR. WCB, C.I | |||||
| DESIGN STANDARDS | API6D, EN12516-2, ASME B16.34 | |||||
| TESTING STANDARDS | API598 | |||||
| END CONNECTION | FLANGED & SCREWED TYPE | |||||
