Strainers-Filters

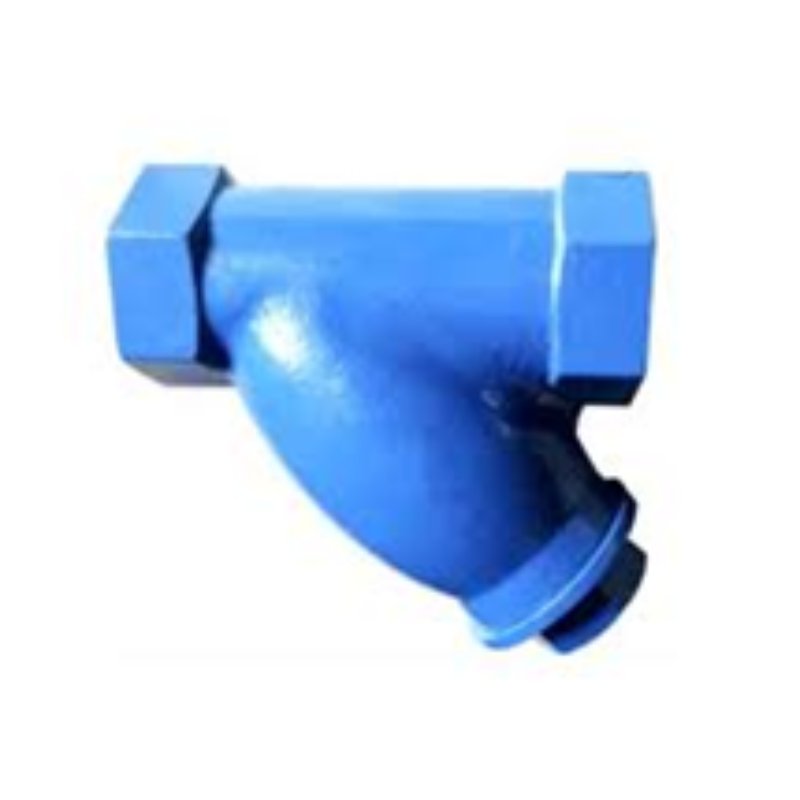

Y STRAINER SCREWED & SOCKET ENDS

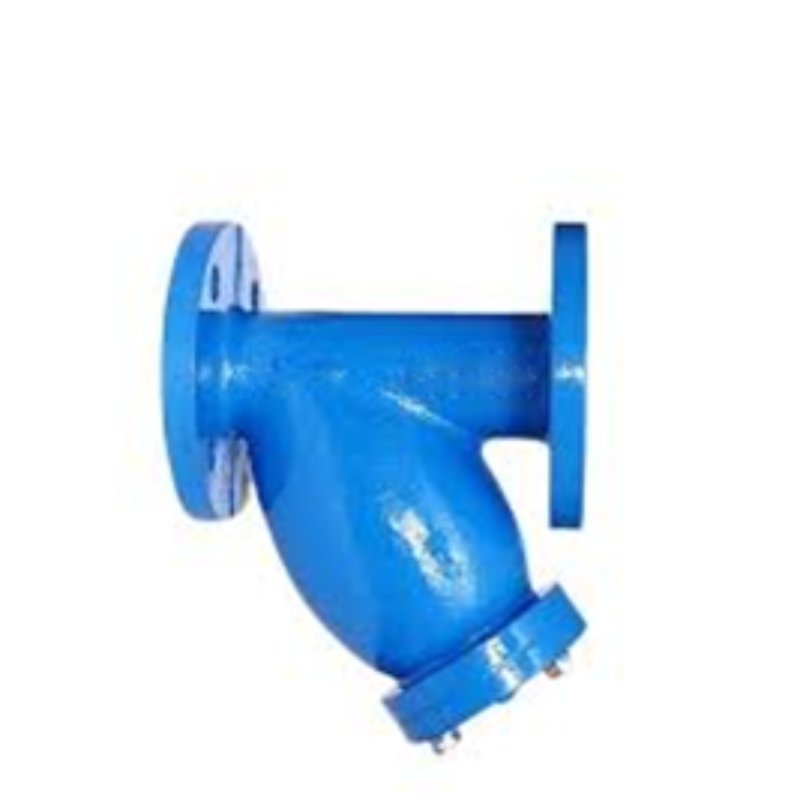

Y STRAINER FLANGED ENDS

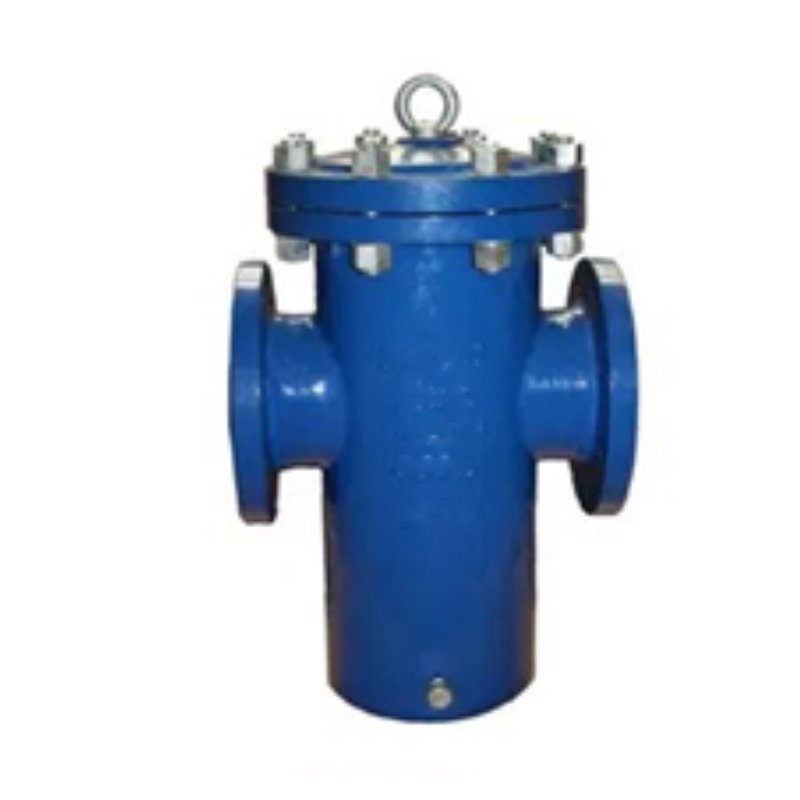

SIMPLEX BASKET STRAINERS FLANGED

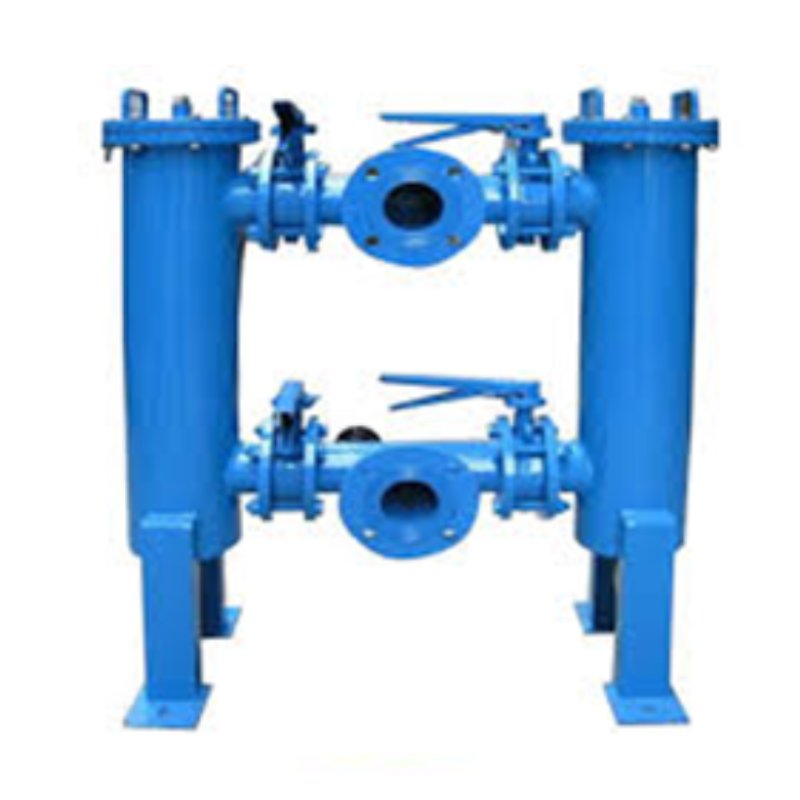

DUPLEX BASKET STRAINERS

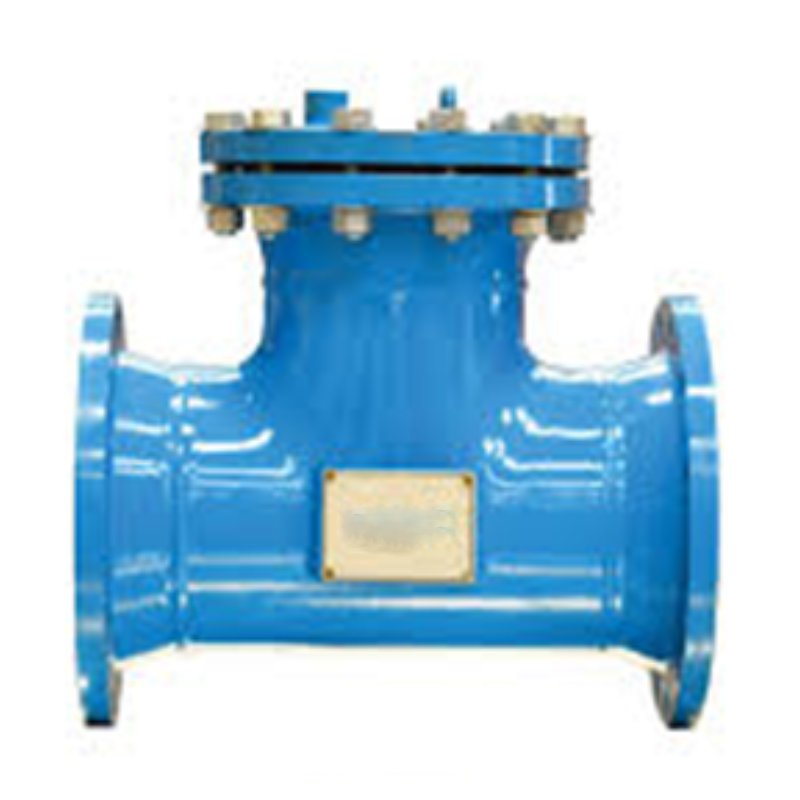

T STAINERS

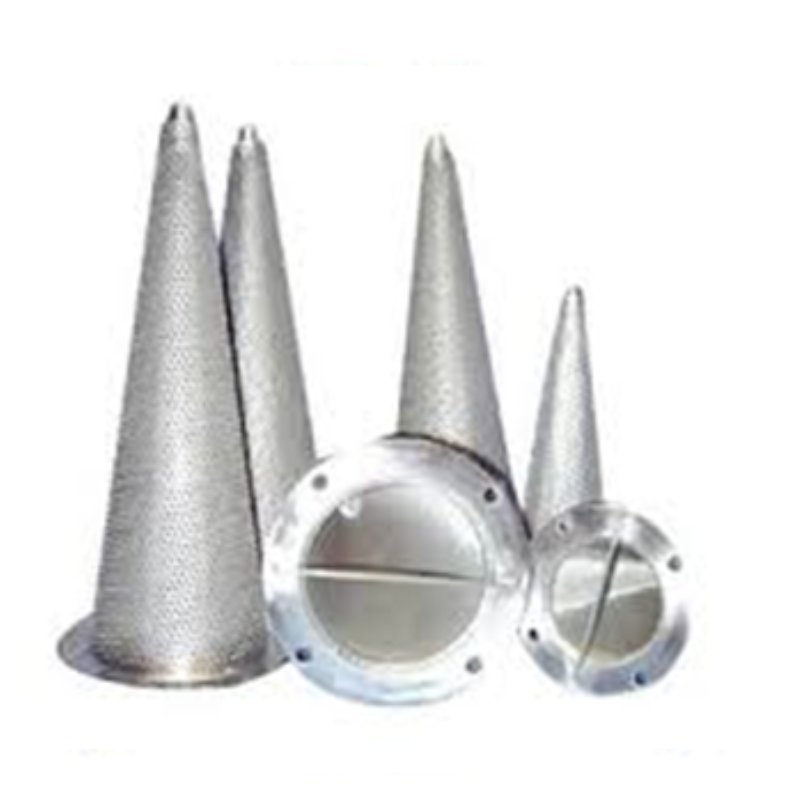

INLINE CONICAL STRAINERS

Y-Strainers are devices for mechanically removing unwanted solids from liquid, gas or steam lines by means of a perforated or wire mesh straining element. They are used in pipelines to protect pumps, meters, control valves, steam traps, regulators and other process equipment.

Y-Strainers are used in a wide variety of liquid straining applications to protect downstream process system components in many industries, including: chemical processing, petroleum, power generation and marine. Water handling applications, where Y-Strainers are used to protect equipment that could be damaged or clogged by unwanted sand, gravel or other debris, are very common

Specification(s)

Size ½” To 40” ½” To 24” ½” To 24”
ANSI Class 150 300 600
TEST PRESSURE BODY(KG/CM2) 32 79 156
TEST PRESSURE SEAT (KG/CM2) 22 57 115
MATERIAL OF CONS. A216GR. WCB, WC5 WC6, WC9 LCB, CF8, CF8M, CF3 CF3M, C.I, CS FABRICATED, SS FABRICATED
DESIGN STANDARDS API 598, ANSI B16.34
TESTING STANDARDS API 598
END CONNECTION SCREWED, FLANGED
