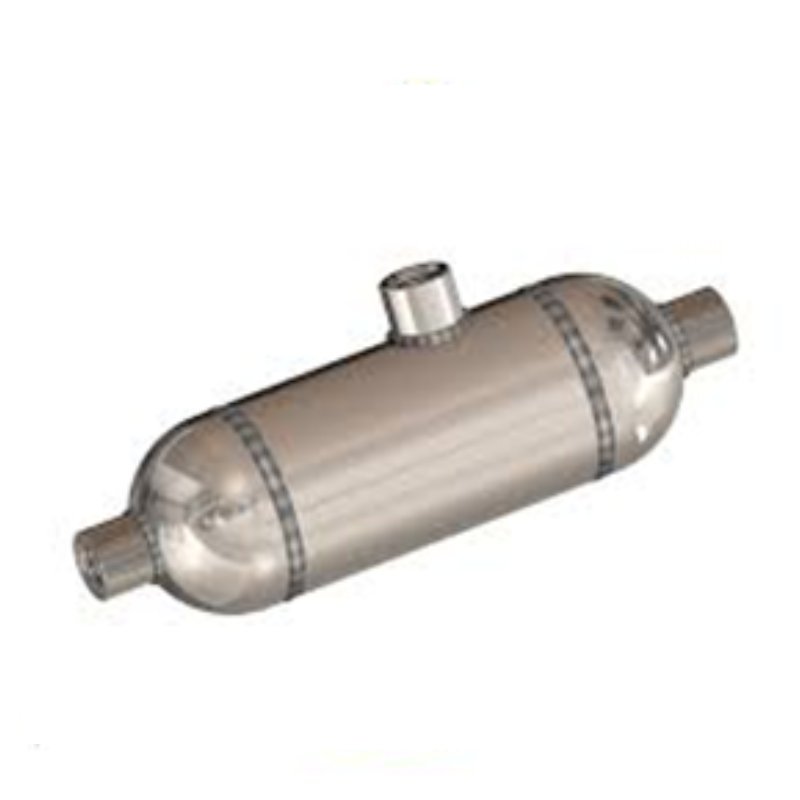

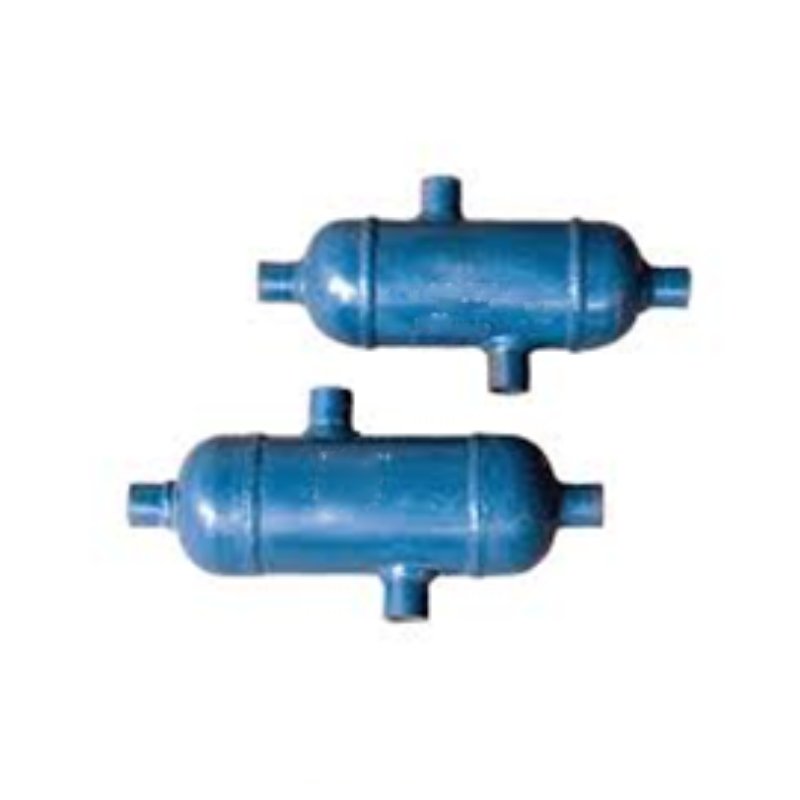

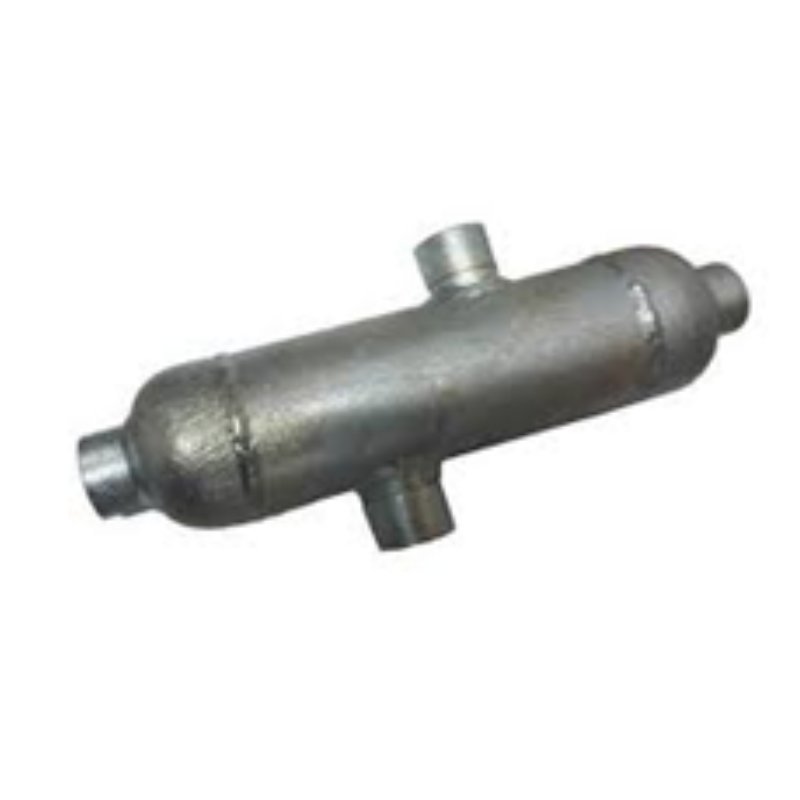

Condensate Pots
A condensate pot is a device that collects and manages condensate, which is liquid water that forms when steam or air cools. Condensate pots are used in industrial processes that use steam or compressed air. The pot acts as a barrier between the instruments and the steam or gases in the pipeline.
The pot protects instruments and valves from high temperatures and steam. he condensate collected at the bottom of the pot creates a seal. This seal prevents steam from reaching the pressure transmitter or other sensitive equipment directly. The seal ensures that only the pressure of the process fluid (not steam) is measured, which is crucial for accurate readings.
Technical specification:
- Pipe size 1” 2",3",4",5”,6” and larger size upon request.
- Pipe Schedule 40, 80, 160, XX seamless pipe.
- Number of Ports 2 ports upto 8 ports , or as required
- Total Length As required Normally Pipe length is 8",to ,12" and larger length upon request.
- Material of construction Carbon Steel ASTM A106 ,Carbon Steel ASTM A105, Stainless Steel 316/316l Stainless Steel 304/304l Alloy Steel ASTM A335 P11 ,Alloy Steel ASTM A335 P22 ,P91 , ansd other alloy steels
- Thread Connections NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9
- Testing pressure : 1000 psi to 9000 psi
Specification(s)
| Size | ½” To 6” | ½” To 6” | ½” To 6” | ½” To 6” | ||
|---|---|---|---|---|---|---|
| ANSI Class | 1000 | 3000 | 6000 | 9000 | ||
| TEST PRESSURE BODY(KG/CM2) | 32 | 79 | 156 | 236 | ||
| TEST PRESSURE SEAT (KG/CM2) | 22 | 57 | 115 | 172 | ||
| MATERIAL OF CONS. | CS, SS304, SS304L, SS318, SS16L, P11, P22 | |||||
| DESIGN STANDARDS | Manufacturer, Standard Design | |||||
| TESTING STANDARDS | As per relivent pressure class | |||||
| END CONNECTION | FLANGED, SCREWED & SOCKETWELD | |||||
