Globe Valve
A globe valve, , is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.. There are usually two halves of the body within the globe valve that are separated by an internal baffle
A globe valve,is a type of valve used for regulating flow in a pipeline, consisting of a movable plug or disc element and a stationary ring seat in a generally spherical body.

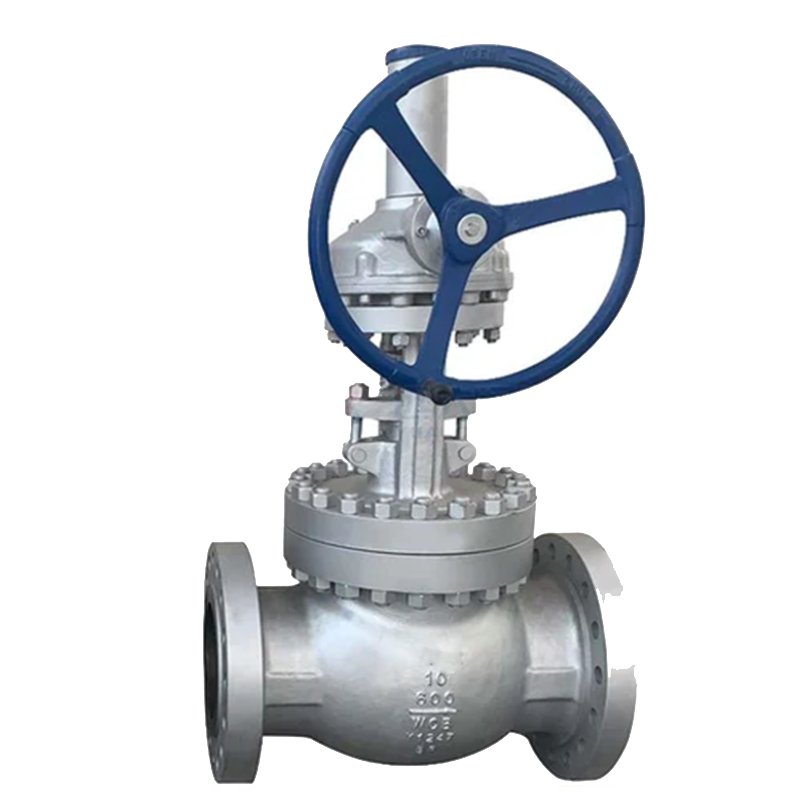

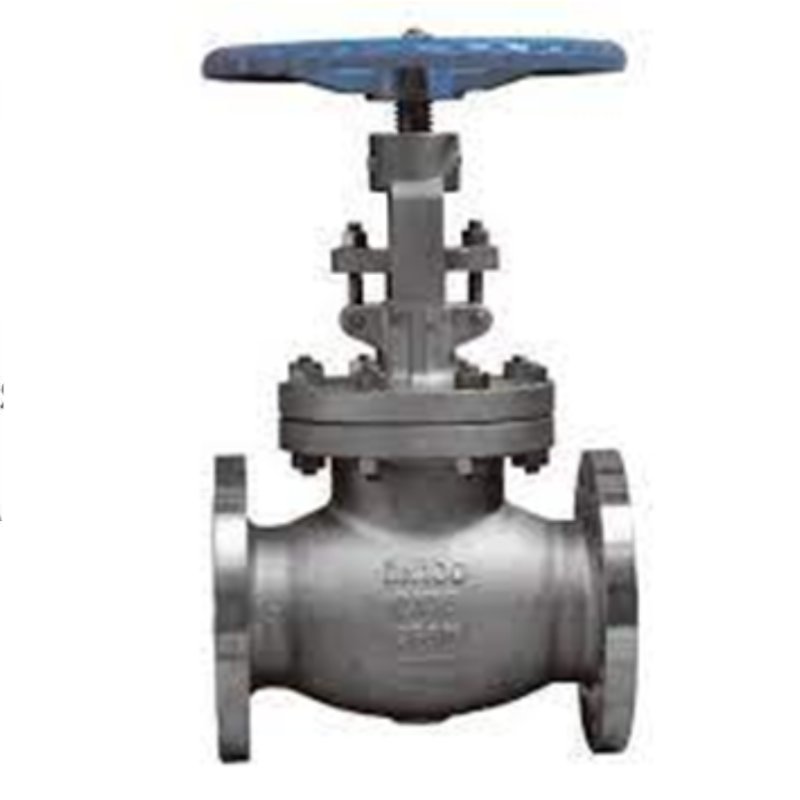

Globe valves can stop, start, and regulate the flow of fluids. Globe valves have a spherical body with a movable plug or disc element and a stationary ring seat. Globe valves are commonly used in high-pressure, industrial piping systems. The plug is also called a disc.[3] In globe valves, the plug is connected to a stem which is operated by screw action using a handwheel in manual valves
Globe valves have higher pressure drops than gate valves because the fluid's direction changes as it passes through the valve. However, this pressure drop is not a controlling factor in some applications.
Specification(s)
| Size | ½” To 24” | ½” To 20” | ½” To 12” | ½” To 12” | ½” To 8” | ½” To 8” |
|---|---|---|---|---|---|---|
| ANSI Class | 150 | 300 | 600 | 900 | 1500 | 2500 |
| TEST PRESSURE BODY(KG/CM2) | 32 | 79 | 156 | 236 | 392 | 652 |
| TEST PRESSURE SEAT (KG/CM2) | 22 | 57 | 115 | 172 | 287 | 477 |
| MATERIAL OF CONS. | A216GR. WCB, WC5 WC6, WC9 LCB, CF8, CF8M, CF3 CF3M, C.I | |||||
| DESIGN STANDARDS | API 600, BS 1414, ANSI B 16.34, ANSI 16.10, ANSI B16.25 | |||||
| TESTING STANDARDS | API 598 | |||||
| END CONNECTION | FLANGED AND BUTTWELD | |||||
